Technical Secrets | Why DC Anti-Loose Nuts Never Come Loose

DC anti-loose nuts, developed by Guangdong Fengheng, feature an independently patented concentric clamping structure. As a competitive domestic alternative, they match or even outperform imported counterparts with superior cost performance. Many wonder how DC nuts stay firmly fastened amid high-frequency vibration, impact loads and extreme temperature differences. Here we reveal its core technical principles.

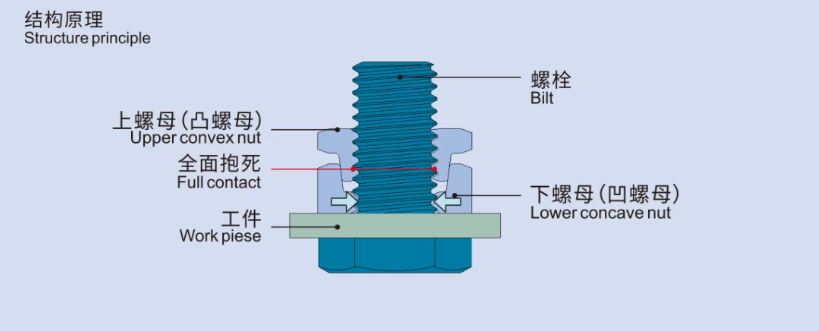

1. Male and Female Dual-Nut Structure

Different from conventional nuts and spring washers with passive anti-loose designs, DC nuts adopt a paired male-female structure for active mechanical locking:

1. When tightened to standard torque, the upper convex nut shrinks inward to fully clamp the bolt.

2. Maximum contact area ensures even distribution of locking force without local stress concentration.

3. The structural design fundamentally prevents loosening, ideal for high-vibration scenarios including high-speed rail, wind power equipment and mining machinery.

2. Three Core Advantages Surpassing Traditional Solutions

✅ Permanent Anti-loose Performance: Maintains stable performance under long-term vibration. Field tests show no loosening after three years of operation on hydraulic breakers.

✅ Reusable Durability: Supports repeated assembly and disassembly with undiminished locking capacity, cutting maintenance and replacement costs greatly.

✅ Wide Compatibility: Fits bolts of various tolerances and standard threads (GB, DIN, UNC, BSW), lowering procurement costs.

✅ Enhanced Mechanical Strength: The clamping structure improves tensile strength. Standard grades 8, 10 and 12 are available, and grade 14 ultra-high strength can be customized.

3. Authoritative Test Verification

According to transverse vibration tests conducted by the National Standard Parts Quality Inspection Center, DC nuts retain over 91% of residual axial force after 2000 high-frequency vibration cycles, ranking among the top tier domestically and internationally.

The product holds patents in China and Germany, as well as trademark registrations in over 30 countries, building solid advantages in technology, testing and intellectual property.

Committed to core technology rather than cut-throat price competition, DC anti-loose nuts redefine high-end anti-loose standards with original Chinese designs, enabling import substitution, cost reduction and efficiency improvement across diverse industries.
