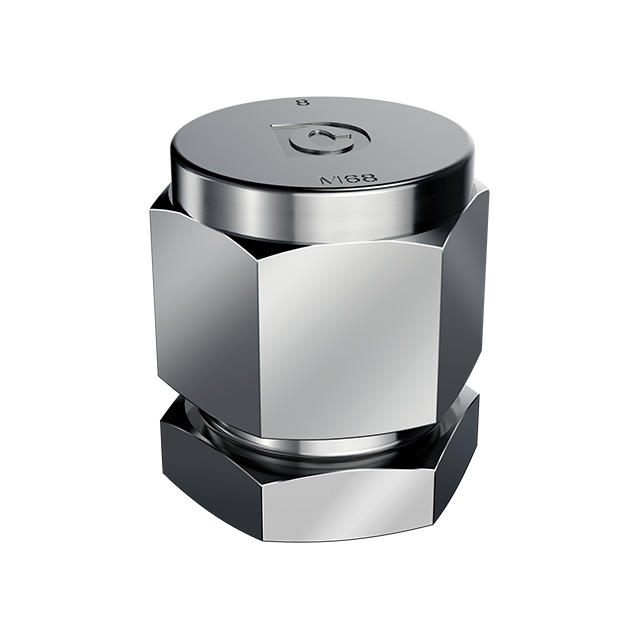

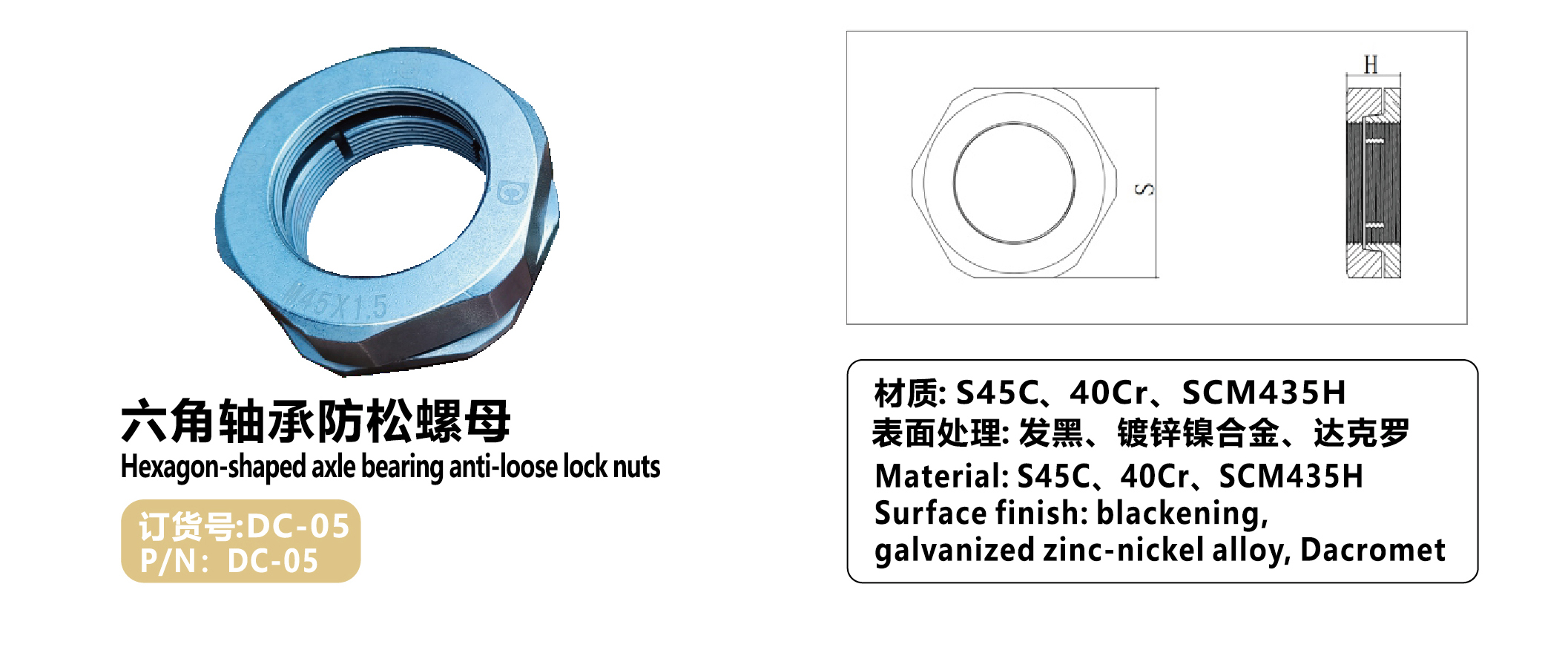

DC-05 Anti Loose Nut with Cap

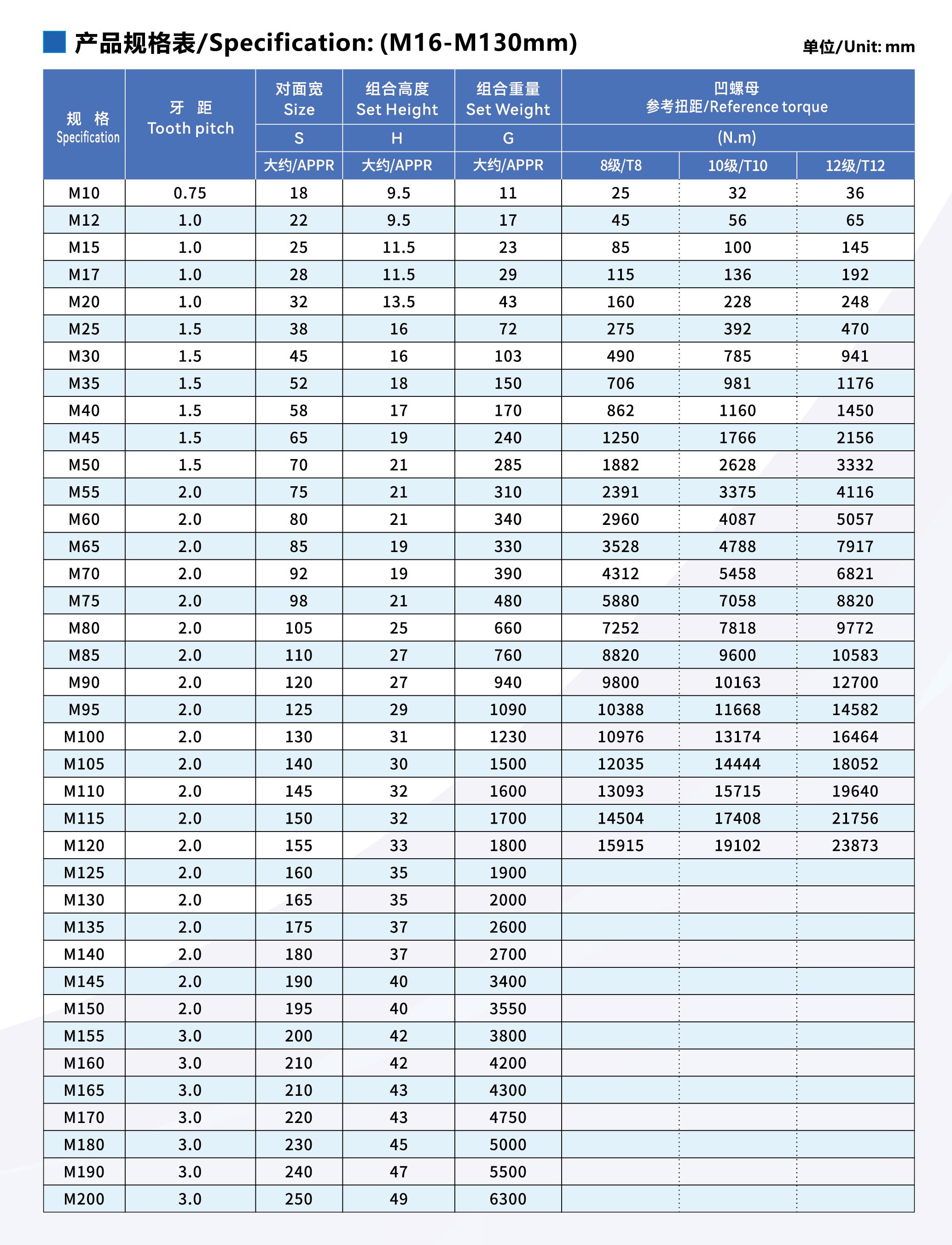

Technical Parameters
Strength grade:gb/6184-2000(DIN EN ISO898-2)G8,G10,G12

Operative Standard:
All-metal anti loose nut assembly.Standard thread accords with:
GB/192,GB/193,GB/197(DIN EN ISO 7042)
Fine thread accords with:
GB/192,GB/193,GB/197(DIN EN ISO 10513)

Mechanical Properties Accords with:
GB/T3098.2-2000,GB/T3098.4-2000(DIN EN ISO2320)

Special Material:
According to customer request,such as S45c,40cr,SCM435,35CrMo,KNDS,20CrMnTi,etc.

Surface FInish:
According to DIN EN ISO 4042
(Zinc-Nickel-Zinc nickel alloy)Zinc,hot-dip zinc,
phosphating,Dacro,Kumite,etc.

Thread:
Metric common and fine teeth.Can be customized inch thread or American thread.



  • DC-05

  • DC

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button



【DC anti-loose nut】



RLStructure Principle:

1. A nut combination of a concave and a convex one.

2. When the upper nut is tightened to a reasonable torque,the lower nut will completely lock the bolt and achieve permanent anti-loosening.

3. A large contact surface of the lower nut and the bolt is designed to enhance the anti-loosening performance and the tensile strength.

4. Indefinitely recycled.

5. Competitive price.


1(1)

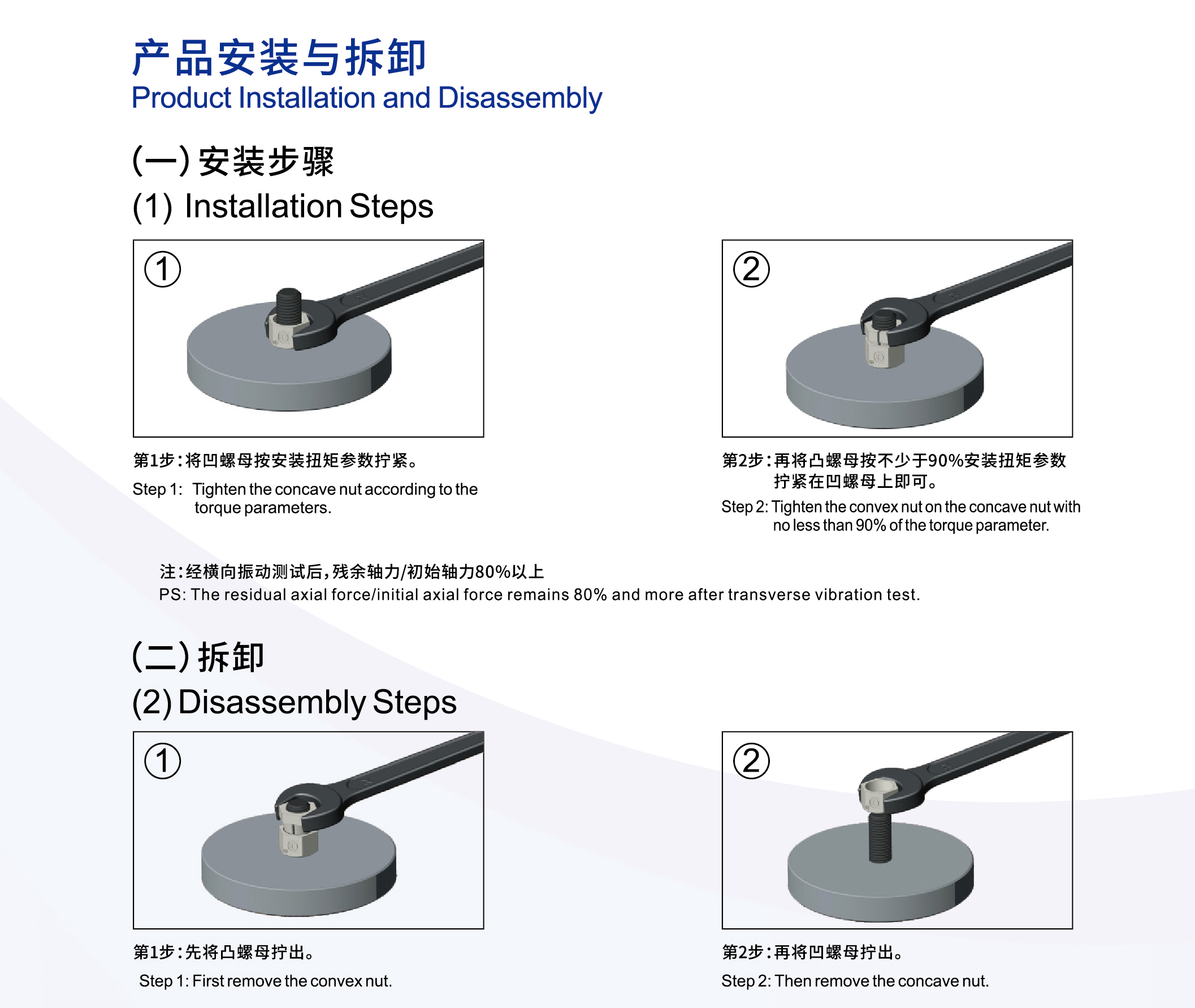

Product lnstallation and Disassembly


一、Installation Steps


AZ


二、Disassembly Steps


AZ2
